Rotary railroad car dumper system for coal unloading rapidly
General Information:
| Place of Origin: | china |
| Brand Name: | SSI |
| Certification: | manufacture certificate |
| Model Number: | customized |
|
Product: |
Rail Car Dumper |
Color: |
Grey |
|
Painting: |
INTERNATIONAL |
Motor: |
Seimens |
|
Advantage: |
High Performance |
Price: |
Low Cost |
|
High Light: |
speical designed, Reliable, reputation,high quality and cost effective. rapidly unloading
|
||
Product Description

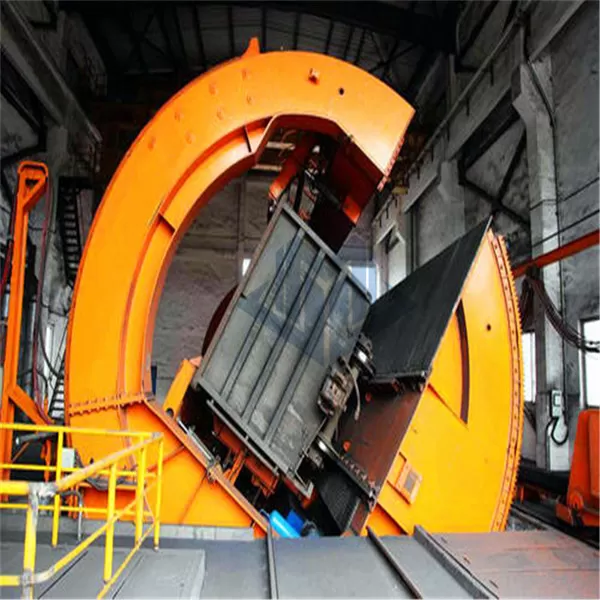

Rotary Railroad Car Dumper System Rail Car Dumper Automatic Wagon Unloading System
The main forms of rotary railload car dumper system are rotor type and roll type. Among them, the most used is the rotary railload car dumper. The rotor dumper is characterized by light weight and small size. However, the ground civil engineering cost is relatively large. Roll dumpers are rarely used. The roll dumper is characterized by large self weight, high power consumption and relatively small civil engineering cost. The efficiency of single car dumper is generally 18-25 cars per hour. In order to improve the efficiency, the multi section dumper adopts the gondola without uncoupling.
|
Selection parameters of train dumper |
||||||||||||||
|
Number of vehicles overturning at the same time |
Type |
Tipping capacity |
Applicable models |
Model size(mm) |
Tipping weight (T) |
Rotation angle (°) |
Slewing speed |
Starting and braking time |
Rotation time |
|||||
|
|
|
(knots / hour) |
|
long |
wide |
high |
rated |
max |
normal |
max |
r/min |
s |
s |
|
|
1 |
C |
Turn back |
20-24 |
C50～C60 |
11938～14038 |
3140～3243 |
2790～3594 |
100 |
110 |
160 |
175 |
1 |
8 |
65-75 |
|
2 |
O |
penetration |
58-74 |
C60 |
It can be adjusted according to the actual model |
2x84 |
2x110 |
160 |
170 |
2.8 |
8 |
35-45 |
||
|
C |
Turn back |
32-36 |
C60 |
220 |
240 |
165 |
175 |
1.2 |
8 |
50-70 |
||||
|
3 |
O |
penetration |
90 |
C80～C100 |
300 |
372 |
165 |
180 |
1.885 |
6 |
40-60 |
|||
|
C |
Turn back |
42 |
C61～C96 |
300 |
372 |
175 |
175 |
1.09 |
8 |
50-75 |
||||
|
4 |
O |
penetration |
112 |
C80 |
400 |
ellipsis |
165 |
ellipsis |
1.885 |
3 |
35-45 |
|||
