Heavy duty conveyor belt for bulk material handling at opencast mining
|
Capacity: |
2000 T/h |
Product: |
Belt Conveyor |
|
Painting: |
PPG |
Color: |
Orange |
|
Motor: |
Seimens |
Steel Structure: |
SA2.5 |
|
Character: |
Reliable |
Material: |
High Quality Steel |
|
High Light: |
Special designed according to application situation, Reliable, reputation,high quality and cost effective. Figure out the best lolution. |
||
Product Description
Heavy duty Conveyor Belt for Bulk Material Handling Conveyor belt Tailor Made Belt Conveyor
Brief introduction of Heavy duty Conveyor Belt for Bulk Material Handling
The SSI conveyor belt is mostly engineered, disigned, and maunfactured according to client`s technical specifications. This process allows us to create that will be the exact length and width at the angle required for your specify scenario.
Specification of bult conveyor
| Model | Capacity(t/h) | Belt width(mm) | Speed(m) | Max distance(m) | Power of Motor(kw) |
Diameter of pulley(mm)
|
Diameter of roller(mm) | Max incline angle(°) |
| DTS80/40/2*40S | 400 | 800 | 2 | 800 | 2*40 | 500 | 89 | +18 |
| DTS80/40/2*55S | 400 | 800 | 2 | 800 | 2*55 | 500 | 89 | +18 |
| DTL80/40/90S | 400 | 800 | 2 | 1000 | 90 | 630 | 108 | +18 |
| DTL80/40/2*40 | 400 | 800 | 2 | 800 | 2*40 | 500 | 89 | +18 |
| DTL80/40/2*55 | 400 | 800 | 2.5 | 800 | 2*40 | 630 | 89 | +18 |
| DTL100/63/2*75S | 630 | 1000 | 1.9 | 1000 | 2*75 | 630 | 108 | +18 |
| DTL100/80/160S | 800 | 1000 | 2.5 | 1000 | 160 | 630 | 108 | +18 |
| DTL100/80/2*160S | 800 | 1000 | 2.5 | 1500 | 2*160 | 630 | 108 | +18 |
| DTL120/120/2*160S | 1200 | 1200 | 2.5 | 1000 | 2*160 | 800 | 133/159 | ± 5 |
| DTL120/120/2*200S | 1200 | 1200 | 2.5 | 1000 | 2*200 | 800 | 133/159 | +18 |
| DTL120/150/2*160S | 1500 | 1200 | 3.15 | 1500 | 2*200 | 800 | 133/159 | +18 |

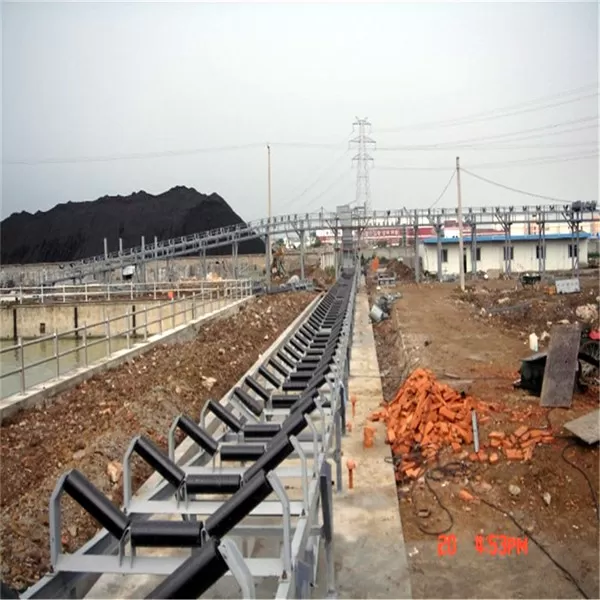

Case1

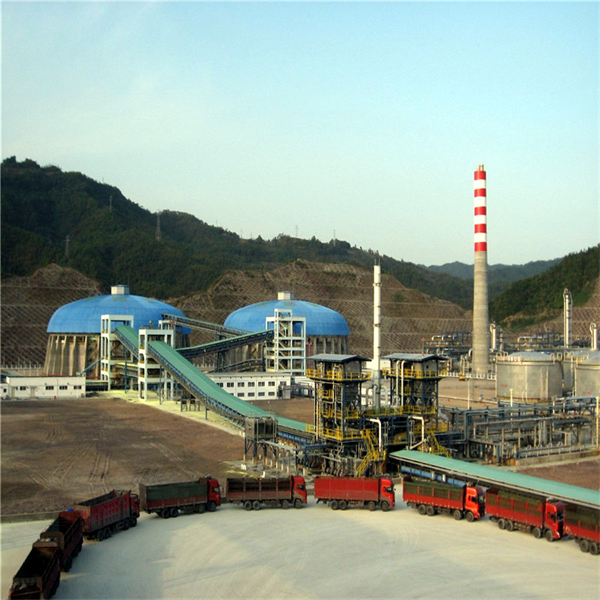

Case 2
