Excavator with bucket wheel and belt conveyor for loose materials handling
Product Details:
| Place of Origin: | china |
| Brand Name: | SSI-ZHIGO |
| Certification: | manufacture certificate |
| Model Number: | customized |
|
Product: |
Transfer Conveyors |
Painting: |
Jotun |
|
Color: |
Yellow |
Capacity: |
4000 T/h |
|
DFT: |
180um |
Main Component: |
European Brand |
|
Steel Work: |
SA2.5 |
Benefit: |
Reliable |
|
High Light: |
4000 t/h Bucket Wheel Excavator, yellow Bucket Wheel Excavator, SA2.5 wheel excavator |
||
Product Description
Excavator with bucket wheel and belt conveyor for loose materials handling
Introduction of Bucket Wheel Excavator

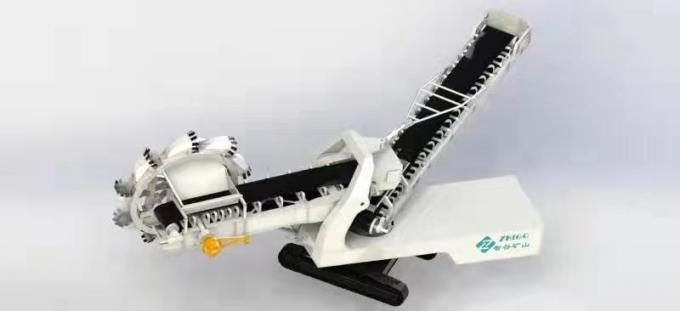

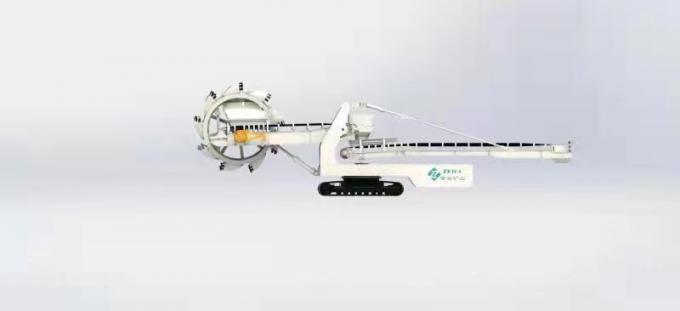

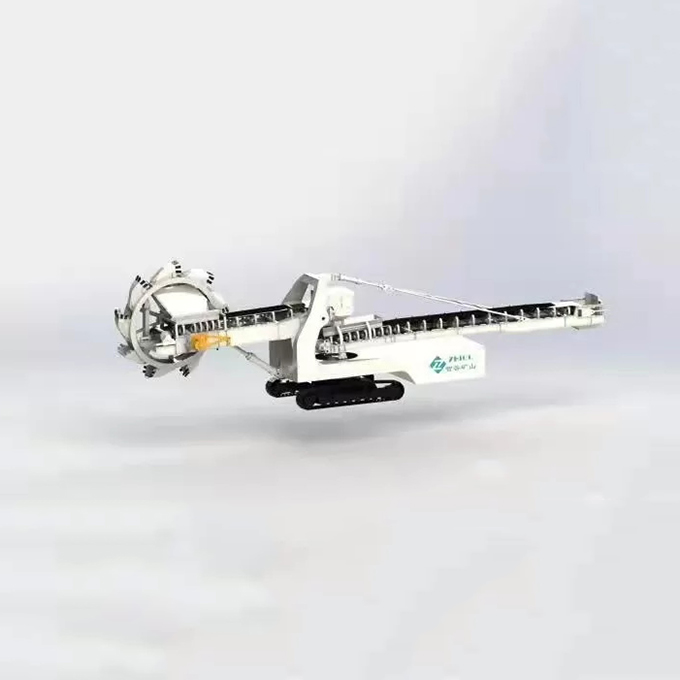

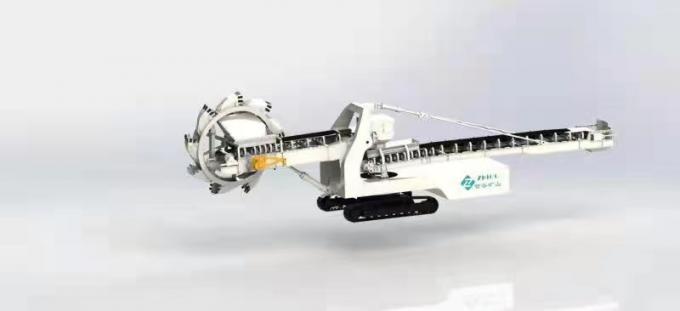

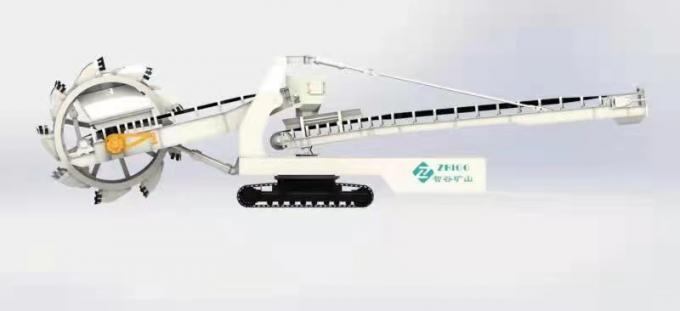

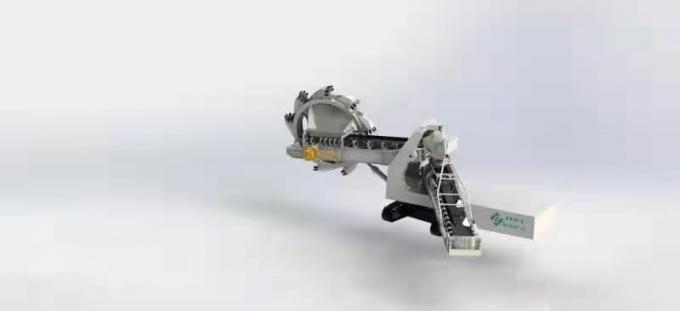

The SSI heavy duty bucket wheel excavator consist of a round wheel with configuration of scoops which is fixed to a boom and is capable of rotating. Bulk material picked up by the cutting wheel is transferred back along the boom. In early cell-type bucket wheels, the material was transferred through a chute leading from each bucket, while newer cell-less and semi-cell designs use a stationary chute through which all of the buckets discharge.
The machine is combined with bucket wheel and belt conveyor. A discharge boom receives material through the superstructure from the cutting boom and carries it away from the machine, frequently to an external conveyor system.
The round wheel with a configuration of scoops which is fixed to a boom and is capable of rotating. Material picked up by the cutting wheel is transferred back along the boom. In early cell-type bucket wheels, the material was transferred through a chute leading from each bucket, while newer cell-less and semi-cell designs use a stationary chute through which all of the buckets discharge.
Technical specifications
|
Model |
Mini Mini type |
Small type |
Compact type |
|
Bucket-wheel boom length(m) |
5～10 |
10～15 |
15～25 |
|
Theoretical conveying capacity dumped(m3/h) |
100～500 |
500～1500 |
1500～3000 |
|
Specific dinging force(N/cm) |
60-100 |
60-120 |
|
|
Cutting height(m) |
5～7 |
7～12 |
12～23 |
|
Ground pressure(N/cm2) |
100～300 |
||
Applicatios
Case1
Case2
Case3
Case4
Case5
